Cable trays



LADDER TYPE CABLE TRAYS

(Hot-dip galvanised)

 The "KWANG MYUNG" system is based on metal ladder tray design for the installation of large cables. A distinctive feature of the system is a high current carrying capacity and good ventilation. The adders are made from sheets of steel, which ensures the durability during the course of their operation.

 The cable routing based on metal ladder type trays used at industrial sites, as well as in civil engineering, for example, in shopping centers, administrative and office buildings.

 A wide range of accessories available for the tray and fastening systems allows it to be  lifted, lowered, rotated and allows for track branching in all directions, as well as division of power and data wires and cables.

FIXINGS FOR THE CABLE TRAY
WORLD PATENT

Connection ladders and accessories made using: connecting plates, universal plate connections and connecting rod brackets.

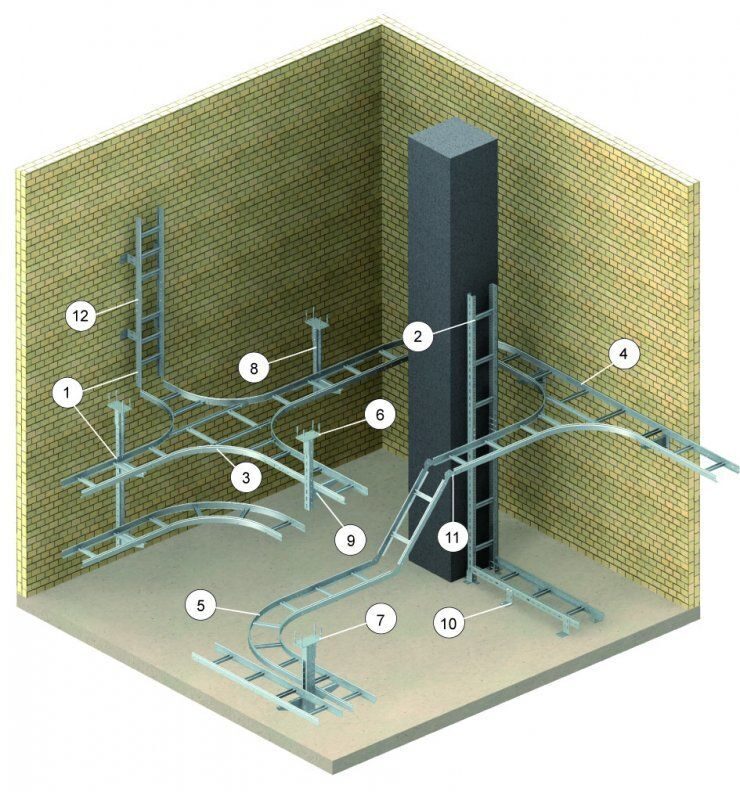

1 - Universal ladder tray
2 - Vertical ladder tray
3 - Cross-linked
4 - Т-tap
5 - winding
6 - frame roof (Standard)
7 - frame roof (doubled)
8 -bracket plank (C-shaped)
9 - block consoles
10 - adjustment angles
11 - connection plates or universal connection plates
